1002 Series

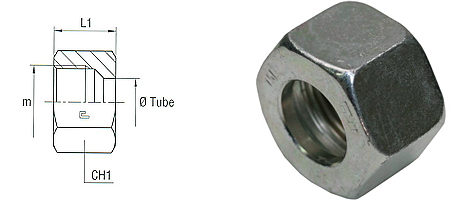

DIN 2353 Metric Compression Nut





SKU	Tube (mm)	M (mm)	L1 (mm)	CHI (mm)
1002-04LL	4	8×1	11	10
1002-06LL	6	10×1	11.5	12
1002–06L	6	12×1.5	14.5	14
1002-06S	6	14×1.5	16.5	17
1002-08LL	8	12×1	12	14
1002-08L	8	14×1.5	14.5	17
1002-08S	8	16×1.5	16.5	19
1002-10LL	10	14×1.0	13	17
1002-10L	10	16×1.5	15.5	19
1002-10S	10	18×1.5	17.5	22
1002-12LL	12	16×1.0	13.7	19
1002-12L	12	18×1.5	15.5	22
1002-12S	12	20×1.5	17.5	24
1002-14S	14	22×1.5	20.5	27
1002-15L	15	22×1.5	17	27
1002-16S	16	24×1.5	20.5	30
1002-18L	18	26×1.5	18	32
1002-20S	20	30×2	24	36
1002-22L	22	30×2	20	36
1002-25S	25	36×2	27	46
1002-28L	28	36×2	21	41
1002-30S	30	42×2	29	50
1002-35L	35	45×2	24	50
1002-38S	38	52×2	32.5	60
1002-42L	42	52×2	24	60
