C2606 Series
Description:
Compression TEE with Female Pipe Run
SAE:
080426
Similar Products:
Parker – MBU
WeatherHead – 7805

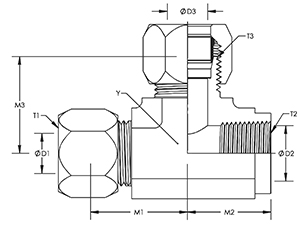

| HnF SKU | Y Hex | T1 | M1 | D1 | T2 |
| C2606-04-02-04 | 0.563 | 7/16-20 | 0.89 | 0.203 | 1/8-27 |
| C2606-04-04-04 | 0.750 | 7/16-20 | 1.03 | 0.203 | 1/4-18 |
| C2606-06-04-06 | 0.750 | 9/16-18 | 1.05 | 0.281 | 1/4-18 |
| C2606-08-06-08 | 0.875 | 3/4-16 | 1.23 | 0.422 | 3/8-18 |
| C2606-10-08-10 | 1.063 | 7/8-14 | 1.42 | 0.500 | 1/2-14 |
| C2606-12-12-12 | 1.313 | 1-1/16-12 | 1.58 | 0.656 | 3/4-14 |
| C2606-14-12-14 | 1.313 | 1-3/16-12 | 1.62 | 0.719 | 3/4-14 |
| HnF SKU | M2 | D2 | T3 | M3 | D3 |
| C2606-04-02-04 | 0.66 | 0.322 | 7/16-20 | 0.89 | 0.203 |
| C2606-04-04-04 | 0.88 | 0.438 | 7/16-20 | 1.03 | 0.203 |
| C2606-06-04-06 | 0.88 | 0.438 | 9/16-18 | 1.05 | 0.281 |
| C2606-08-06-08 | 1.02 | 0.563 | 3/4-16 | 1.23 | 0.422 |
| C2606-10-08-10 | 1.23 | 0.703 | 7/8-14 | 1.42 | 0.500 |
| C2606-12-12-12 | 1.36 | 0.906 | 1-1/16-12 | 1.58 | 0.656 |
| C2606-14-12-14 | 1.42 | 0.906 | 1-3/16-12 | 1.62 | 0.719 |
