C319 Series
Description: Flareless Compression Ferrule
SAE: 080115A
Similar Products:
Parker – TU
Aeroquip – FF9173
WeatherHead – 7165A

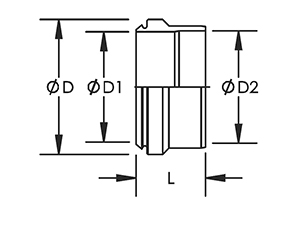

| HnF SKU | Y Hex | D1 | D2 | L |
| C319-02 | 0.237 | 0.130 | 0.140 | 0.288 |
| C319-03 | 0.307 | 0.193 | 0.205 | 0.329 |
| C319-04 | 0.367 | 0.255 | 0.268 | 0.363 |
| C319-05 | 0.430 | 0.318 | 0.330 | 0.367 |
| C319-06 | 0.492 | 0.380 | 0.393 | 0.393 |
| C319-08 | 0.663 | 0.505 | 0.521 | 0.429 |
| C319-10 | 0.780 | 0.631 | 0.647 | 0.442 |
| C319-12 | 0.925 | 0.756 | 0.772 | 0.475 |
| C319-14 | 1.063 | 0.881 | 0.897 | 0.475 |
| C319-16 | 1.188 | 1.006 | 1.022 | 0.475 |
| C319-20 | 1.446 | 1.260 | 1.275 | 0.475 |
| C319-24 | 1.694 | 1.510 | 1.524 | 0.475 |
| C319-32 | 2.210 | 2.014 | 2.026 | 0.509 |
