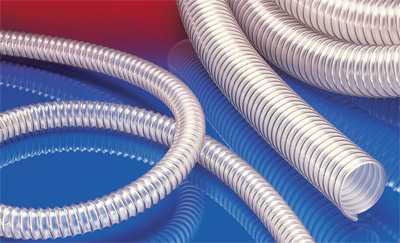

AIRDUC® PUR-355-AS Duct Hose
Applications:
- Flexible Hose/Ducting for High Volume of Abrasive Powder, Bulk Material, Granulate and for Gases
- Plastic Industry, Conveying of Granulates and Powders: Granulate Conveying Equipment, Vacuum Hopper/Conveyor, Suction Conveyor, Dosing System, Bulk-Bag (Big Bag)-Charging and Discharging, Shredder, Mill, Extruder, Injection Molding Machine Printed Circuit Board Drilling Machine (PCB)
- Powder Spraying, Powder Coating: e.g. Printing Industry
- Offset Printing Machine: Air Supply, Air Supply Cabinet
- Industrial Vacuum Cleaners, Vacuum Cleaners
- Explosion Hazard Area
- Agricultural Industry, Conveying of Seed and Fertilizers: Seeding Machine, Seed Drill, Drilling Machine
- Agricultural Industry: Pneumatic Grain Conveyor
- Construction Industry, Road Milling Machine
- Raw Material Conveying Hose for Powder, Granulates, Sand, Quartz, Gravel, Shards and Chips/Shavings
- Compressor, Side Channel Blower, Vacuum Pump, Pressure Pump, Pump
- Paper Mill, Paper and Pulp Industry, Packaging Machine: Edge Strip Suctioning System/Edge Trim Exhaust Systems
- Surface Preparation: Shot Blasting/Sand Blasting Recovery (Blasting Chamber), Ship Yard, Stripping Machine, Flooring Preparation Machine, Grinding Machine
- Municipal Vehicle: Sweeper, Sweeping Machine
- Municipal Vehicle: Lawn Mower, Slope Mower, Leaf Blower/Leaf Collector
- Vacuum Lifting Equipment, Vacuum Handling System
Properties:
- Heavy Duty
- Highly Abrasion Resistant
- Increased Pressure and Vacuum Resistance
- Microbe Resistant
- Good Resistance to Oil, Gasoline, and Chemicals
- Very Good Low Temperature Flexibility
- Flame-Retardant According to UL94-V2
- Flame-Retardant According DIN 4102-B1
- Permanently Antistatic Wall: In Accordance with ISO 8031 Electrical and Surface Resistance <109 Ω and in Accordance with TRGS 727 <2.5* 108 Ω
- In Accordance with ATEX 201434/EU (1999/92/EC) and German TRGS 727: Pneumatic Transport of Flammable Dusts ad Bulk Materials (Zone 20,21,22 inside), Conveying for Flammable Liquids (Inside Zone 0, 1, 2), for Conveying for Non-Flammable Liquids, for Use in Zone 1 and 2 (Gases)
- Conforms to the Safety Regulations of the German Wood Trade Association
- According to DIN 26057 Type 3
- Conforms to RoHS Guideline
- Positive and Negative Pressure Ratings are the Recommended Maximum Operating Values
- Product can be Manufactured to Meet Higher Operating Values upon Request
- The Bend Radius is Calculated from the Center of the Hose in an Arched Position
- Technical Data Based on Tests at 68°F and are Approximate Values
- Proper Use and Maintenance of NORRES Hoses is the Sole Responsibility of Purchaser and Ultimate User of the Product
Temperature Range:
- – 40°F to 195°F
- Short Time to 255°F
Design, Material:
AIRDUC® Profile Hose
- Spring Steel Wire Firmly Embedded in the Wall
- Wall: Permanently Antistatic Premium Ester-Poly-Urethane (Pro-PUR®)
- Wall Thickness 0.055 – 0.060 Inch Approximate
25 Feet PUR-355-AS Duct Hose
| Dash Size | ID Inch (mm) | OD (in) | Pressure DIN 26057 (50% Elongation) psi | Vacuum DIN 26057 (axially fixed) | Bending Radius | Weight (lbs/ft) |
| 13MM ♦ | (13) | 0.79 | 72.50 (145.05) | 29.53 (29.53) | 0.53 | 0.095 |
| 18MM ♦ |
(18) | 1.00 | 63.90 (120.40) | 29.53 (29.53) | 5/8 | 0.115 |
| 020MM | (20) | 1.06 | 68.45 (120.40) | 29.53 (29.53) | 0.67 | 0.155 |
| 022MM | (22) | 1.14 | 62.80 (119.50) | 29.53 (29.53) | 0.71 | 0.170 |
| 0100 | 1 | 1.25 | 55.90 (105.95) | 29.53 (29.53) | 3/4 | 0.190 |
| 30MM ♦ | (30) | 1.57 | 58.00 (110.15) | 29.53 (29.53) | 1.00 | 0.280 |
| 0125 | 1.25 | 1.65 | 54.70 (103.65) | 29.53 (29.53) | 1.02 | 0.295 |
| 0150 | 1.50 | 1.89 | 46.65 (88.05) | 29.53 (29.53) | 1.14 | 0.350 |
| 40MM | (40) | 1.97 | 44.45 (83.85) | 29.53 (29.53) | 1-1/8 | 0.365 |
| 42MM ♦ | (42) | 2.05 | 42.15 (80.25) | 26.87 (29.53) | 1.22 | 0.375 |
| 0200 | 2 | 2.36 | 36.05 (67.65) | 24.36 (29.53) | 1.36 | 0.445 |
| 55MM ♦ | (55) | 2.56 | 32.90 (61.70) | 22.15 (29.53) | 1.48 | 0.485 |
| 60MM | (60) | 2.76 | 30.30 (56.80) | 20.23 (29.53) | 1.57 | 0.525 |
| 0250 | 2.5 | 2.95 | 28.05 (52.50) | 18.75 (29.53) | 1.67 | 0.565 |
| 70MM | (70) | 3.19 | 26.10 (48.90) | 15.95 (29.53) | 2.44 | 0.660 |
| 0300 | 3 | 3.39 | 24.45 (45.70) | 14.91 (29.53) | 2.58 | 0.705 |
| 80MM ♦ | (80) | 3.58 | 23.00 (42.85) | 14.03 (29.53) | 2.72 | 0.745 |
| 0350 | 3.5 | 3.98 | 20.50 (38.20) | 12.40 (28.06) | 3.00 | 0.840 |
| 0400 | 4 | 4.37 | 18.50 (34.45) | 11.52 (27.46) | 3.27 | 1.000 |
| 110MM ♦ | (110) | 4.76 | 16.80 (31.40) | 10.48 (22.74) | 3.54 | 1.095 |
| 0450 | 4.5 | 4.96 | 16.15 (30.00) | 10.04 (20.97 | 3.68 | 1.130 |
| 0500 | 5 | 5.35 | 14.85 (27.70) | 9.30 (17.72) | 3.96 | 1.235 |
| 130MM ♦ | (130) | 5.55 | 14.30 (26.60) | 8.86 (16.54) | 4.09 | 1.285 |
| 0550 | 5.5 | 5.94 | 13.35 (24.75) | 8.27 (14.32) | 4.37 | 1.365 |
| 0600 | 6 | 6.34 | 12.45 (23.15) | 7.97 (15.65) | 4.65 | 1.620 |
| 170MM ♦ | (170) | 7.13 | 11.00 (20.45) | 7.09 (12.25) | 5.20 | 1.830 |
| 175MM ♦ | (175) | 7.32 | 10.65 (19.85) | 6.79 (11.52) | 5.33 | 1.875 |
| 0700 | 7 | 7.52 | 10.35 (19.30) | 6.64 (10.93) | 5.47 | 1.930 |
| 0800 | 8 | 8.39 | 9.35 (17.40) | 4.43 (10.63) | 6.14 | 2.095 |
| 225MM ♦ | (225) | 9.37 | 8.35 (15.45) | 3.84 (8.27) | 6.83 | 2.350 |
| 250MM ♦ | (250) | 10.35 | 7.55 (13.90) | 3.54 (6.50) | 7.52 | 2.605 |
| 1000 | 10 | 10.51 | 7.40 (13.70) | 3.40 (6.35) | 7.64 | 2.655 |
| 275MM ♦ | (275) | 11.34 | 6.80 (12.70) | 3.25 (5.32) | 8.21 | 2.860 |
| 1100 | 11 | 11.54 | 6.75 (12.45) | 3.10 (5.17) | 8.35 | 2.910 |
| 300MM ♦ | (300) | 12.32 | 6.30 (11.60) | 2.66 (5.76) | 8.90 | 3.465 |
| 1200 | 12 | 12.52 | 6.15 (11.45) | 2.66 (5.61) | 9.06 | 3.525 |
| 315MM ♦ | (315) | 12.91 | 5.95 (11.10) | 2.51 (5.17) | 9.31 | 3.635 |
| 325MM ♦ | (325) | 13.31 | 5.80 (10.75) | 2.51 (4.72) | 9.59 | 3.750 |
| 350MM ♦ | 350 | 14.29 | 5.35 (10.00) | 2.21(3.84) | 10.28 | 4.030 |
| 400MM ♦ | 400 | 16.26 | 4.70 (8.70) | 2.07 (3.54) | 11.65 | 5.390 |
| 450MM ♦ | 450 | 18.23 | 4.20 (7.75) | 1.92 (2.66) | 13.03 | 6.050 |
| 500MM ♦ | 500 | 20.24 | 3.75 (6.95) | 1.62 (2.07) | 14.45 | 6.720 |
♦ ♦ Not In Stock; Possible 2-3 Week Delivery
50 Feet PUR-355-AS Duct Hose
| Size | ID Inch (mm) | OD (in) | Pressure DIN 26057 (50% Elongation) psi | Vacuum DIN 26057 (axially fixed) | Bending Radius | Weight (lbs/ft) |
| 13MM ♦ | (13) | 0.79 | 72.50 (145.05) | 29.53 (29.53) | 0.53 | 0.095 |
| 18MM ♦ | (18) | 1.00 | 63.90 (120.40) | 29.53 (29.53) | 5/8 | 0.115 |
| 20MM ♦ | (20) | 1.06 | 68.45 (120.40) | 29.53 (29.53) | 0.67 | 0.155 |
| 22MM ♦ | (22) | 1.14 | 62.80 (119.50) | 29.53 (29.53) | 0.71 | 0.170 |
| 0100 | 1 | 1.25 | 55.90 (105.95) | 29.53 (29.53) | 3/4 | 0.190 |
| 30MM♦ | (30) | 1.57 | 58.00 (110.15) | 29.53 (29.53) | 1.00 | 0.280 |
| 0125 | 1.25 | 1.65 | 54.70 (103.65) | 29.53 (29.53) | 1.02 | 0.295 |
| 0150 | 1.50 | 1.89 | 46.65 (88.05) | 29.53 (29.53) | 1.14 | 0.350 |
| 40MM | (40) | 1.97 | 44.45 (83.85) | 29.53 (29.53) | 1-1/8 | 0.365 |
| 42MM ♦ | (42) | 2.05 | 42.15 (80.25) | 26.87 (29.53) | 1.22 | 0.375 |
| 0200 | 2 | 2.36 | 36.05 (67.65) | 24.36 (29.53) | 1.36 | 0.445 |
| 55MM ♦ | (55) | 2.56 | 32.90 (61.70) | 22.15 (29.53) | 1.48 | 0.485 |
| 60MM | (60) | 2.76 | 30.30 (56.80) | 20.23 (29.53) | 1.57 | 0.525 |
| 0250 | 2.5 | 2.95 | 28.05 (52.50) | 18.75 (29.53) | 1.67 | 0.565 |
| 70MM | (70) | 3.19 | 26.10 (48.90) | 15.95 (29.53) | 2.44 | 0.660 |
| 0300 | 3 | 3.39 | 24.45 (45.70) | 14.91 (29.53) | 2.58 | 0.705 |
| 80MM ♦ | (80) | 3.58 | 23.00 (42.85) | 14.03 (29.53) | 2.72 | 0.745 |
| 0350 | 3.5 | 3.98 | 20.50 (38.20) | 12.40 (28.06) | 3.00 | 0.840 |
| 0400 | 4 | 4.37 | 18.50 (34.45) | 11.52 (27.46) | 3.27 | 1.000 |
| 110MM ♦ | (110) | 4.76 | 16.80 (31.40) | 10.48 (22.74) | 3.54 | 1.095 |
| 0450 | 4.5 | 4.96 | 16.15 (30.00) | 10.04 (20.97 | 3.68 | 1.130 |
| 0500 | 5 | 5.35 | 14.85 (27.70) | 9.30 (17.72) | 3.96 | 1.235 |
| 130MM ♦ | (130) | 5.55 | 14.30 (26.60) | 8.86 (16.54) | 4.09 | 1.285 |
| 0550 | 5.5 | 5.94 | 13.35 (24.75) | 8.27 (14.32) | 4.37 | 1.365 |
| 0600 | 6 | 6.34 | 12.45 (23.15) | 7.97 (15.65) | 4.65 | 1.620 |
| 170MM ♦ | (170) | 7.13 | 11.00 (20.45) | 7.09 (12.25) | 5.20 | 1.830 |
| 175MM ♦ | (175) | 7.32 | 10.65 (19.85) | 6.79 (11.52) | 5.33 | 1.875 |
| 0700 | 7 | 7.52 | 10.35 (19.30) | 6.64 (10.93) | 5.47 | 1.930 |
| 0800 | 8 | 8.39 | 9.35 (17.40) | 4.43 (10.63) | 6.14 | 2.095 |
♦ ♦ Not In Stock; Possible 2-3 Week Delay
 |
 |
 |
 |
 |
 |
 |
 |
