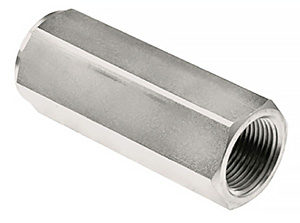

Steel Check Valve
Features:
- Carbon Steel With Zinc Chromate Plating (RoHS Compliant)
- Metal to Metal Seat
- Hardened Poppet
- Temperature Range -4°F to +176°F

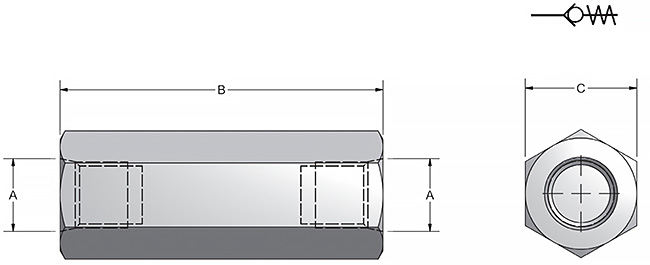

| NPT SKU | SAE SKU | NPT Size | SAE Size | B | C | Crack psi | Max psi | Max Flow GPM |
| CV04S | CV04S-SAE | 1/4″ | #4 | 2.17 | 0.75 | 7 | 5700 | 4 |
| CV04S-65 | CV04S-SAE-65 | 1/4″ | #4 | 2.17 | 0.75 | 65 | 5700 | 4 |
| CV06S | 3/8″ | – | 2.68 | 0.95 | 7 | 5700 | 8 | |
| CV06S-65 | 3/8″ | – | 2.68 | 0.95 | 65 | 5700 | 8 | |
| CV06S-SAE | – | #6 | 2.28 | 0.75 | 7 | 5700 | 8 | |
| CV06S-SAE-65 | – | #6 | 2.28 | 0.75 | 65 | 5700 | 8 | |
| CV08S | 1/2″ | – | 2.95 | 1.06 | 7 | 5700 | 13 | |
| CV08S-65 | 1/2″ | – | 2.95 | 1.06 | 65 | 5700 | 13 | |
| CV08S-SAE | – | #8 | 2.72 | 0.95 | 7 | 5700 | 13 | |
| CV08S-SAE-65 | – | #8 | 2.72 | 0.95 | 65 | 5700 | 13 | |
| CV12S | CV12S-SAE | 3/4″ | #12 | 3.48 | 1.38 | 7 | 5700 | 23 |
| CV12S-65 | CV12S-SAE-65 | 3/4″ | #12 | 3.48 | 1.38 | 65 | 5700 | 23 |
| CV16S | CV16S-SAE | 1″ | #16 | 4.33 | 1.61 | 7 | 5000 | 40 |
| CV16S-65 | CV16S-SAE-65 | 1″ | #16 | 4.33 | 1.61 | 65 | 5000 | 50 |
| CV20S | CV20S-SAE | 1-1/4″ | #20 | 4.72 | 2.17 | 7 | 5000 | 50 |
| CV20S-65 | CV20S-SAE-65 | 1-1/4″ | #20 | 4.72 | 2.17 | 65 | 5000 | 50 |
| CV24S | CV24S-SAE | 1-1/2″ | #24 | 5.43 | 2.56 | 7 | 5000 | 80 |
| CV24S-65 | CV24S-SAE-65 | 1-1/2″ | #24 | 5.43 | 2.56 | 65 | 5000 | 80 |
| CV32S | CV32S-SAE | 2″ | #32 | 5.43 | 2.95 | 7 | 4500 | 110 |
| CV32S-65 | CV32S-SAE-65 | 2″ | #32 | 5.43 | 2.95 | 65 | 4500 | 110 |
