Standard Z Clamp Bracket Unit
- The Standard Z Clamp Unit Features an Anchor Bolt Between each of the Inserts
- The Junction Adapter provides Break Points in Lines allowing for Shorter Hose and Tubing Runs Reducing Leaks at Connection Points by Securing the Adapter against Vibration within the Z Clamp Units
- Stackable for Space Conservation
- Maintains Consistent Center Line Dimensions between Lines both Horizontally & Vertically (in Stacking Application)
- Mix & Match Pipe, Tube, Hose and Junction Adapters
- Suited for All Types of Hydraulic Applications
- Available in Standard and Outside Hole Mounting Configurations

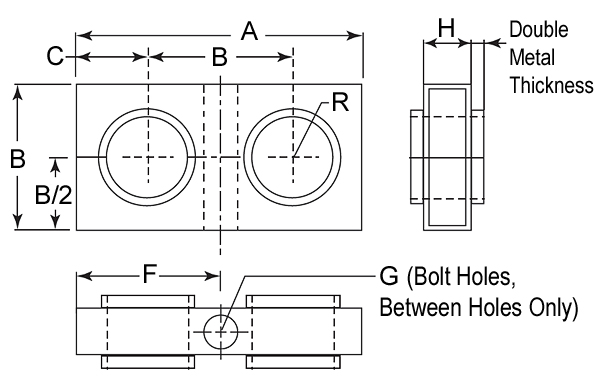

| Part # | # of Holes |
# of Bolts |
A (in.) |
C (in.) |
F (in.) |
G (in.) |
H (in.) |
R (in.) |
|---|---|---|---|---|---|---|---|---|
| HAC-1 Series 1½” 14 Gauge (B=1½”) | ||||||||
| HAC-1-02-01 | 2 | 1 | 2.938 | 0.719 | 1.469 | 0.344 | 0.550 | 0.422 |
| HAC-1-03-02 | 3 | 2 | 4.406 | 0.719 | 1.469 | |||
| HAC-1-04-03 | 4 | 3 | 5.940 | 0.719 | 1.469 | |||
| HAC-1-05-04 | 5 | 4 | 7.140 | 0.594 | 1.343 | |||
| HAC-1-06-05 | 6 | 5 | 8.938 | 0.719 | 1.469 | |||
| HAC-1-07-06 | 7 | 6 | 10.188 | 0.594 | 1.343 | |||
| HAC-1-32-31 | 32 | 31 | 48.00 | – | – | |||
| HAC-2 Series 2″ 14 Gauge (B=2″) | ||||||||
| HAC-2-02-01 | 2 | 1 | 3.875 | 0.938 | 1.938 | 0.344 | 0.550 | 0.594 |
| HAC-2-03-02 | 3 | 2 | 5.641 | 0.844 | 1.844 | |||
| HAC-2-04-03 | 4 | 3 | 7.891 | 0.938 | 1.938 | |||
| HAC-2-05-04 | 5 | 4 | 9.672 | 0.844 | 1.844 | |||
| HAC-2-06-05 | 6 | 5 | 11.672 | 0.813 | 1.813 | |||
| HAC-2-07-06 | 7 | 6 | 13.625 | 0.813 | 1.813 | |||
| HAC-2-24-23 | 24 | 23 | 48.00 | – | – | |||
| HAC-3 Series 3″ 11 Gauge (B=3″) | ||||||||
| HAC-3-02-01 | 2 | 1 | 6.766 | 1.875 | 3.375 | 0.406 | 0.750 | 1.063 |
| HAC-3-03-02 | 3 | 2 | 8.703 | 1.406 | 2.984 | |||
| HAC-3-04-03 | 4 | 3 | 11.703 | 1.406 | 2.797 | |||
| HAC-3-05-04 | 5 | 4 | 14.703 | 1.406 | 2.859 | |||
| HAC-3-06-05 | 6 | 5 | 17.703 | 1.406 | 2.859 | |||
| HAC-3-16-15 | 16 | 15 | 48.00 | – | – | |||
| NOTE: Inserts or Hardware not included | ||||||||
